Electricity powers nearly everything in your home—from the lights and appliances to your heating, EV charger, and even your internet router. But most people don't think much about how it all works—until something goes wrong.

Whether you’re a homeowner trying to understand your property better, a landlord preparing for safety checks, or just curious about what’s behind the walls, understanding the basics of your home’s electrical system can be incredibly helpful.

Let’s break it down into plain English.

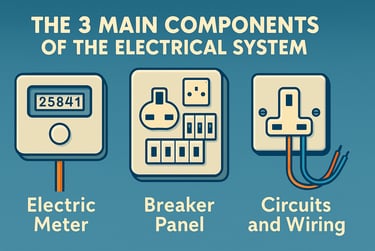

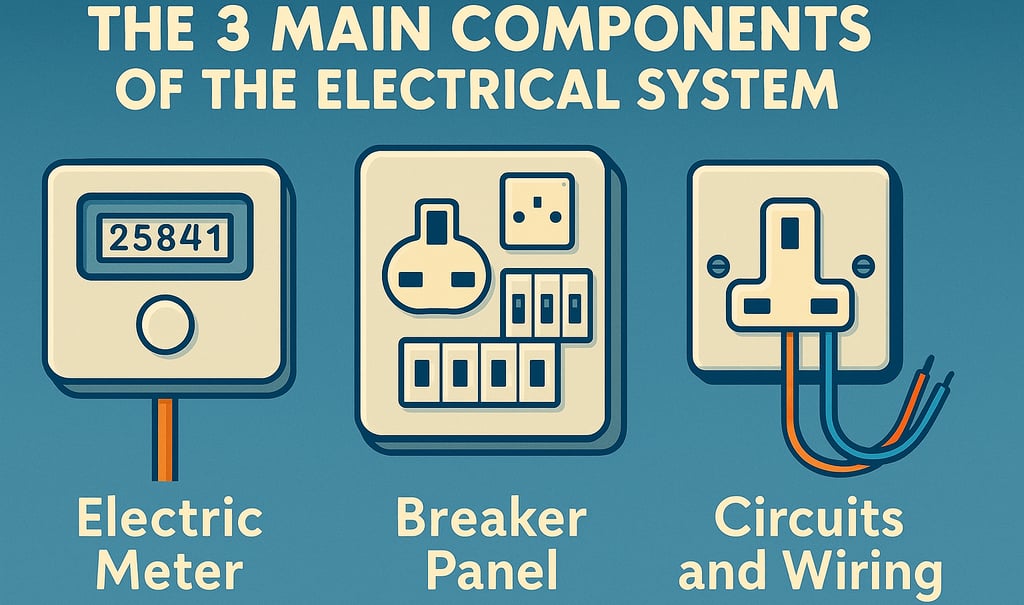

🔌 The 3 Main Components of a Home Electrical System

At its core, your home’s electrical system is made up of three essential components that work together to keep everything powered and safe:

1. The Meter

2. The Breaker Panel (Consumer Unit)

3. The Circuits & Wiring

Each one plays a specific role, and if any of these components fail, your system could stop working—or worse, become a safety hazard.

Let’s look at each part more closely.

⚡ 1. The Meter – Where Power Enters Your Home

What Is It?

The electric meter is the very first stop for electricity as it enters your home from the national grid. You’ll usually find it near the front of your house, in a wall-mounted box, a cabinet, or sometimes in an outdoor enclosure.

It measures how much electricity you use, which is how your energy provider calculates your bill.

Types of Meters

• Traditional Meters – You read them manually.

• Smart Meters – Send usage data automatically and give you real-time insight into your energy use.

• Prepayment Meters – You top up like a pay-as-you-go phone.

Why It Matters

The meter is essentially the gateway to your electrical system. If there’s a fault with it, you might experience:

• No power

• Inaccurate billing

• Problems connecting new circuits or solar panels

If your meter ever looks damaged, stops working, or gives weird readings, you’ll need to contact your energy supplier—not an electrician—as they own the meter.

⚡ 2. The Breaker Panel – The Brain of the System

What Is It?

Often called a consumer unit, fuse box, or simply the breaker panel, this is where the electricity is split into separate circuits for different parts of your house.

Each circuit is protected by a circuit breaker or RCBO (Residual Current Breaker with Overcurrent protection), which automatically cuts off power if there’s a fault. It protects you from electric shocks, overloads, and even fires.

You’ll typically find the consumer unit:

• In a utility room

• Under the stairs

• In a garage

• In a hallway cupboard

What's Inside?

A modern consumer unit contains:

• Main switch – Turns off all power to the property

• RCBOs or MCBs – Individual circuit breakers for sockets, lights, appliances, etc.

• RCDs (if not using RCBOs) – Residual current devices that protect groups of circuits

• SPD (Surge Protection Device) – Prevents voltage spikes from damaging appliances

Why It Matters

The breaker panel is your electrical command centre. It's where an electrician would go to:

• Shut off power during maintenance

• Identify faulty circuits

• Add new circuits during a renovation

If you hear buzzing, notice frequent trips, or see burn marks inside the unit—call a qualified electrician immediately.

⚡ 3. Circuits & Wires – The Electrical Highway System

What Are They?

Think of circuits and wires as the veins and arteries of your home’s electrical system. Once electricity passes through the meter and the breaker panel, it travels along insulated wires to power everything in your home.

Each wire runs on a circuit, and each circuit is designed for specific uses:

• Lighting circuits – for ceiling lights, pendant fixtures, downlights

• Ring or radial socket circuits – for plug sockets

• Dedicated appliance circuits – for electric cookers, showers, washing machines, EV chargers, etc.

Types of Wires

• Live (brown or red) – Carries current to your devices

• Neutral (blue or black) – Carries current back to the panel

• Earth (green/yellow) – Safety wire that prevents shocks

Modern homes use PVC-sheathed copper cables, but older homes may still have rubber or fabric-insulated wiring, which can degrade and become dangerous over time.

Why It Matters

Wiring faults are one of the most common causes of electrical problems. Overloaded circuits, degraded insulation, or poorly installed wires can lead to:

• Flickering lights

• Tripping breakers

• Overheating outlets

• Electrical fires

If your wiring is over 30 years old or you experience frequent electrical faults, it’s time for an inspection—and possibly a rewire.

🛠️ Common Problems With Each Component

🔋 Meter Issues

• Meter not showing power → Call your energy supplier

• High readings → Could be faulty or due to energy leaks

• Tampering (often visible in rental properties) → Illegal and dangerous

⚠️ Breaker Panel Issues

• Frequent tripping → Could be a short circuit or overload

• Burning smell or visible damage → Shut off power and call an electrician

• No surge protection or RCDs → Upgrade needed for modern safety standards

🔌 Circuit & Wiring Issues

• Buzzing sockets or switches

• Discoloured light fittings

• Warm outlet plates

• No CPC (earth wire) in older lighting circuits

• DIY spurs or overextended rings

Even small symptoms can be signs of bigger problems. Don't ignore them.

🔧 Maintenance: Why It’s Crucial

Now that you’ve made it to this point, you know that the main components of your home's electrical system are the meter, breaker panel, circuits, and wires.

Oftentimes, one or more of these components may fail or require maintenance.

🧰 Here’s how to stay ahead of problems:

• Regular inspections – Especially if you’re buying a new home or your property is 30+ years old

• RCD testing – Press the “T” or “Test” button every 6 months to ensure safety devices work

• EICRs (Electrical Installation Condition Reports) – Required every 5 years for rentals; recommended for homeowners every 10 years

• Avoid DIY – Always hire a qualified electrician for repairs or upgrades

Electrical systems are like cars—ignore them too long and they’ll cost you more later.

🔍 How to Know When Something’s Wrong

Not sure whether something’s just a flicker or a red flag?

Watch for:

• 🔄 Breakers tripping more than once a month

• 💡 Dimming or flickering lights

• 🔥 Warm sockets or plug faces

• 🔊 Buzzing noises near the consumer unit

• ⚡ Slight electric shocks from touching metal appliances

• 🔌 Burn marks near plug sockets

These are all warning signs that something deeper is wrong—and it’s not something to delay.

🏡 Planning Renovations or Extensions?

If you’re planning to:

• Add a kitchen or bathroom

• Convert your loft or garage

• Install outdoor lighting or sockets

• Fit an EV charger

• Upgrade to a heat pump

Then your current circuits and breaker panel might not be up to the task.

An electrical system designed 20+ years ago probably wasn’t built for modern loads—especially with today’s energy-hungry appliances and smart tech. It’s wise to get a professional assessment before investing in building works.

✅ Summary: The 3 Main Components & Why They Matter

Your home’s electrical system is made up of three essential parts: the electricity meter, the breaker panel (also called a consumer unit), and the circuits and wiring that run throughout your house.

Each of these components plays a vital role in powering your home safely:

• The electricity meter measures how much power you’re using. It’s how your energy supplier knows what to charge you, and it gives you a clear picture of your usage. Smart meters are even more helpful, allowing real-time monitoring and tracking.

• The breaker panel is your safety net. It controls how electricity is distributed around your home and protects your circuits from overloading. If something goes wrong—like a fault or overload—it shuts the affected part down to prevent fires or damage.

• Finally, the circuits and wiring are like the veins of your home, carrying electricity to lights, sockets, appliances, and everything else that keeps your home running. They need to be installed correctly and maintained well to ensure everything operates efficiently and safely.

Together, these three elements form the backbone of your home’s power system. Understanding them helps you spot issues early, stay safe, and know when to call a qualified electrician.

💬 Final Thoughts

Understanding the key components of your electrical system is more than just handy knowledge—it’s a step toward protecting your home, avoiding costly repairs, and keeping your family safe.

Whether it’s your meter, your consumer unit, or the hidden web of circuits in your walls, each part plays a vital role in delivering power efficiently and safely.

If you’ve noticed anything unusual—or you’re planning electrical upgrades—it’s time to call in the pros.
